VCSELs (Vertical-Cavity Surface-Emitting Lasers) were invented in the mid-1980s. However, in a relatively short period of time, VCSELs established a reputation as a superior technology for short-distance applications such as fiber channel, Ethernet, and intra-systems communications.
Over the next few years, VCSELs displaced edge-emitter lasers as the technology of choice for short-range datacom and local area networks. VCSEL’s success can be primarily attributed to its lower manufacturing costs and improved dependability compared to edge emitters.
In this blog, the benefits of VCSELs are explored to understand why they are regarded as one of the most effective lasers and why they are used in a variety of industries.
What Is VCSEL?
A vertical-cavity surface-emitting laser diode (VCSEL) is a semiconductor-based laser diode that produces light or an optical beam vertically from its top surface. This type has greater advantages than Edge Emitting Lasers (EEL), which emit light from the side, or Light Emitting Diodes (LED), which emit light from the sides and top. VCSELs offer advantages such as improved beam quality, better efficiency, and ease of fabrication. They also enable higher data transmission rates and are used in applications like high-speed optical communication, 3D sensing, and laser printing.

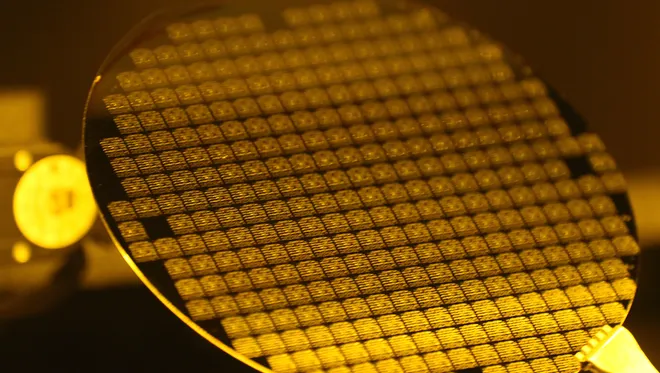

Moreover, VCSELs are manufactured in multiple ways, the most common of which is to integrate them onto a wafer, where thousands of diodes can be integrated on the surface. This wafer-level integration allows for high-volume production and cost efficiency. Another option is to make them into arrays, where multiple VCSELs are grouped together, so that the output power can be increased, enabling applications that require higher power levels or more extensive coverage. Arrays also facilitate better beam shaping and increased reliability in high-performance systems.
When it comes to the VCSEL structure, it is made up of layers of semiconductor material grown on top of one another on a substrate. This is commonly done in a molecular beam epitaxy (MBE) or metal-organic-chemical-vapor-deposition (MOCVD) growing reactor for VCSELs and edge emitters. The precise layering of these materials is crucial for achieving the desired optical properties and performance characteristics. For more information regarding VCSEL and its characteristics, visit here…
The formed wafer is further processed to create individual devices. Now, in the following section, the benefits of the VCSEL laser are examined.
Six Advantages of Vertical-Cavity Surface-Emitting Laser
VCSELs, like many lasers, are used in optical communications. Vertical-Cavity Surface-Emitting Lasers are also more commonly used in long-wavelength communication technologies, such as those used in metro systems, storage networks, and fiber-to-home communications, than in other communication technologies.
The numerous benefits provided by VCSEL technology can be summarized as follows:
- Wavelength Uniformity & Spectral Width: Growth technology has advanced to the point where VCSEL wafers are created with a cavity wavelength standard deviation of less than 2nm. This precision allows for the manufacturing of VCSEL 2-D arrays with minimal wavelength variation between the elements of the array. Such consistency is essential for applications requiring high accuracy and uniformity across multiple VCSELs.
- High-Temperature Operation: Since VCSEL devices can function at temperatures up to 80 degrees Celsius, the cooling system becomes very compact, durable, and portable with this approach. This design advantage allows VCSELs to be used in a variety of applications where space and thermal management are critical, such as in compact electronic devices and high-performance optical systems.
- Wavelength Stability: Since the lasing wavelength of a VCSEL is fixed by the short Fabry-Perot cavity, it is relatively stable and exhibits minimal wavelength drift. Unlike edge emitters, which can operate in multiple longitudinal modes, VCSELs are designed to function in only one longitudinal mode, ensuring a stable and consistent output wavelength.
- Manufacturability: The ability to manufacture VCSELs has been an important selling feature of this technology. VCSELs benefit from a simpler manufacturing process, which allows for high yields and reliability. In contrast, edge emitters often face challenges such as low yield rates and reliability issues associated with catastrophic optical damage (COD), making their production more complex and less consistent.
- Scalability: A fundamental advantage of VCSELs for high-power applications is that they can be easily processed into monolithic 2-D arrays, which edge emitters cannot. These 2-D arrays allow for the efficient integration of many lasers on a single chip, enhancing power output and performance. Furthermore, placing edge-emitter bars in stacks requires a sophisticated and thermally inefficient mounting strategy, complicating the assembly and cooling processes.
- Cost: With the easy processing and heat-sinking technology, 2-D VCSEL arrays are much easier to package than an equivalent edge-emitter bar-stack. This is due to their simpler integration and efficient heat dissipation methods. Heat removal for very high power arrays can be accomplished using existing silicon industry heat-sinking technologies, which are well-established and cost-effective. As a result, the overall cost of the high-power module will be greatly reduced, making VCSEL technology more economically viable for a range of applications.
So that’s a fundamental understanding of VCSELs and their benefits. To see the applications of VCSEL, check the blog: Applications of VCSEL in Various Industries.
