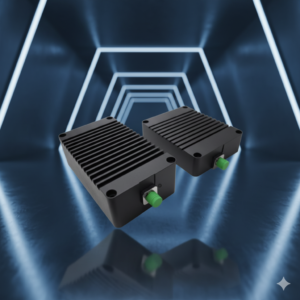

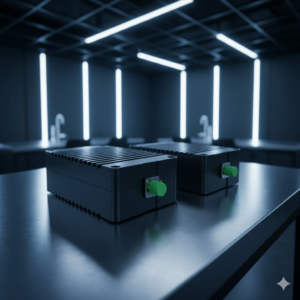

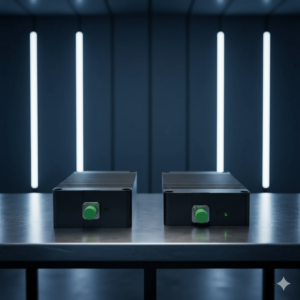

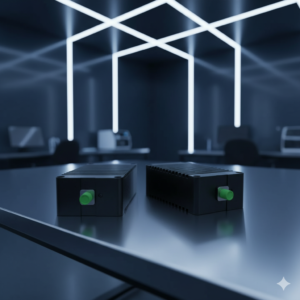

Broadband Light Source Modules
Inphenix Superluminescent Diode (SLD) modules are sophisticated, high-performance broadband light sources designed for a wide array of advanced applications, especially in research and development. These modules are engineered for seamless integration into OEM systems, featuring a plug-and-play design that minimizes setup complexity and enhances reliability. The compact and durable construction, coupled with advanced components like an integrated current driver and thermo-electric cooler, ensures stable operation across diverse environments. This makes them an ideal choice for researchers and engineers who require consistent and dependable performance in their optical systems. Perfect for easy integration and reliability, the Inphenix broad light source module simplifies power management, thermal regulation, and setup. Engineered for seamless integration, this broad light source module features plug-and-play design. Perfect for researchers needing reliable optical systems.
Center Wavelenth(nm)
From:
To: | Typical 3dB Bandwidth(nm)
From:
To: | Typical Output Power(mW)
From:
To: | Typical Ripple(dB) | Module Size | Device Type | Part Number |
|---|---|---|---|---|---|---|
| Center Wavelength(nm) | Typical 3dB Bandwidth(nm) | Typical Output Power(mW) | Typical Ripple(dB) | Module Size | Device Type | Part Number |
| 750 | 10 | 3 | 0.1 | Case 1 | Single-SLD | IPSDS0701 |
| 770 | 13 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0705 |
| 770 | 20 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0706 |
| 780 | 12 | 3 | 0.1 | Case 1 | Single-SLD | IPSDS0702 |
| 780 | 12 | 10 | 0.1 | Case 1 | Single-SLD | IPSDS0707 |
| 780 | 40 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0708 |
| 800 | 10 | 15 | 0.1 | Case 1 | Single-SLD | IPSDS0809 |
| 800 | 40 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0810 |
| 820 | 15 | 0.3 | 0.1 | Case 1 | Single-SLD | IPSDS0801 |
| 820 | 25 | 2.5 | 0.1 | Case 1 | Single-SLD | IPSDS0802 |
| 820 | 40 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0803 |
| 830 | 30 | 15 | 0.2 | Case 1 | Single-SLD | IPSDS0811 |
| 830 | 40 | 7 | 0.1 | Case 1 | Single-SLD | IPSDS0812 |
| 830 | 50 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0813 |
| 840 | 35 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0804 |
| 840 | 45 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0807 |
| 840 | 45 | 11 | 0.1 | Case 1 | Single-SLD | IPSDS0808 |
| 840 | 50 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0814 |
| 850 | 50 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0815 |
| 870 | 50 | 6 | 0.1 | Case 1 | Single-SLD | IPSDS0816 |
| 880 | 45 | 6 | 0.1 | Case 1 | Single-SLD | IPSDS0805 |
| 880 | 40 | 2 | 0.1 | Case 1 | Single-SLD | IPSDS0806 |
| 880 | 45 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0819 |
| 880 | 55 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0817 |
| 900 | 15 | 20 | 0.2 | Case 1 | Single-SLD | IPSDS0902 |
| 900 | 45 | 7 | 0.1 | Case 1 | Single-SLD | IPSDS0903 |
| 920 | 30 | 3 | 0.1 | Case 1 | Single-SLD | IPSDS0901 |
| 920 | 55 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS0904 |
| 920 | 100 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0905 |
| 980 | 25 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS0906 |
| 1020 | 100 | 10 | 0.15 | Case 1 | Single-SLD | IPSDS1001 |
| 1020 | 60 | 7 | 0.1 | Case 1 | Single-SLD | IPSDS1005 |
| 1020 | 110 | 8 | 0.1 | Case 1 | Single-SLD | IPSDS1006 |
| 1040 | 55 | 30 | 0.2 | Case 1 | Single-SLD | IPSDS1007 |
| 1040 | 70 | 10 | 0.1 | Case 1 | Single-SLD | IPSDS1002 |
| 1050 | 45 | 35 | 0.2 | Case 1 | Single-SLD | IPSDS1008 |
| 1050 | 55 | 15 | 0.1 | Case 1 | Single-SLD | IPSDS1009 |
| 1050 | 55 | 30 | 0.1 | Case 1 | Single-SLD | IPSDS1003 |
| 1070 | 60 | 5 | 0.1 | Case 1 | Single-SLD | IPSDS1010 |
| 1070 | 60 | 10 | 0.15 | Case 1 | Single-SLD | IPSDS1004 |
| 1280 | 55 | 10 | 0.5 | Case 1 | Single-SLD | IPSDS1201 |
| 1280 | 70 | 5 | 0.15 | Case 1 | Single-SLD | IPSDS1202 |
| 1280 | 95 | 10 | 0.5 | Case 1 | Single-SLD | IPSDS1203 |
| 1310 | 40 | 35 | 1 | Case 1 | Single-SLD | IPSDS1305 |
| 1310 | 45 | 1 | 0.1 | Case 1 | Single-SLD | IPSDS1301 |
| 1310 | 45 | 20 | 1 | Case 1 | Single-SLD | IPSDS1302 |
| 1310 | 45 | 25 | 1 | Case 1 | Single-SLD | IPSDS1309 |
| 1310 | 55 | 7 | 0.5 | Case 1 | Single-SLD | IPSDS1303 |
| 1310 | 55 | 20 | 1 | Case 1 | Single-SLD | IPSDS1304 |
| 1310 | 55 | 25 | 1 | Case 1 | Single-SLD | IPSDS1311 |
| 1310 | 70 | 18 | 1 | Case 1 | Single-SLD | IPSDS1306 |
| 1310 | 65 | 15 | 1 | Case 1 | Single-SLD | IPSDS1312 |
| 1310 | 80 | 15 | 1 | Case 1 | Single-SLD | IPSDS1307 |
| 1310 | 90 | 10 | 1 | Case 1 | Single-SLD | IPSDS1313 |
| 1310 | 100 | 3 | 0.1 | Case 1 | Single-SLD | IPSDS1308 |
| 1410 | 50 | 10 | 1 | Case 1 | Single-SLD | IPSDS1401 |
| 1410 | 60 | 15 | 1 | Case 1 | Single-SLD | IPSDS1402 |
| 1410 | 70 | 10 | 1 | Case 1 | Single-SLD | IPSDS1403 |
| 1490 | 50 | 5 | 0.5 | Case 1 | Single-SLD | IPSDS1404 |
| 1490 | 65 | 18 | 1 | Case 1 | Single-SLD | IPSDS1405 |
| 1520 | 50 | 15 | 0.15 | Case 1 | Single-SLD | IPSDS1505 |
| 1520 | 75 | 10 | 1 | Case 1 | Single-SLD | IPSDS1506 |
| 1550 | 55 | 0.5 | 0.1 | Case 1 | Single-SLD | IPSDS1501 |
| 1550 | 55 | 5 | 0.2 | Case 1 | Single-SLD | IPSDS1502 |
| 1550 | 60 | 3 | 0.2 | Case 1 | Single-SLD | IPSDS1503 |
| 1550 | 60 | 10 | 1 | Case 1 | Single-SLD | IPSDS1504 |
| 1550 | 65 | 12 | 0.15 | Case 1 | Single-SLD | IPSDS1507 |
| 1550 | 65 | 20 | 0.4 | Case 1 | Single-SLD | IPSDS1508 |
| 1550 | 90 | 8 | 1 | Case 1 | Single-SLD | IPSDS1509 |
| 1580 | 60 | 5 | 0.2 | Case 1 | Single-SLD | IPSDS1510 |
| 1580 | 75 | 5 | 0.4 | Case 1 | Single-SLD | IPSDS1511 |
| 1610 | 55 | 2 | 0.1 | Case 1 | Single-SLD | IPSDS1601 |
| 1610 | 55 | 5 | 0.5 | Case 1 | Single-SLD | IPSDS1602 |
| 1640 | 40 | 5 | 0.5 | Case 1 | Single-SLD | IPSDS1603 |
| 1640 | 50 | 3 | 0.5 | Case 1 | Single-SLD | IPSDS1604 |
| 850 | 100 | 1 | 0.1 | Case 4 or 5 | Multi-SLD | IPSDW0820 |
| 850 | 90 | 5 | 0.1 | Case 4 or 5 | Multi-SLD | IPSDW0821 |
| 850 | 100 | 7.5 | 0.1 | Case 4 or 5 | Multi-SLD | IPSDW0825 |
| 850 | 120 | 5 | 0.1 | Case 5 | Multi-SLD | IPSDW0835 |
| 850 | 100 | 5 | 0.1 | Case 4 or 5 | Multi-SLD | IPSDW0822 |
| 850 | 95 | 6 | 0.1 | Case 4 or 5 | Multi-SLD | IPSDW0824 |
| 1310 | 100 | 3 | 0.5 | Case 4 or 5 | Multi-SLD | IPSDW1321 |
| 1550 | 100 | 3 | 0.5 | Case 4 or 5 | Multi-SLD | IPSDW1521 |
Detailed Overview of Inphenix SLD Modules

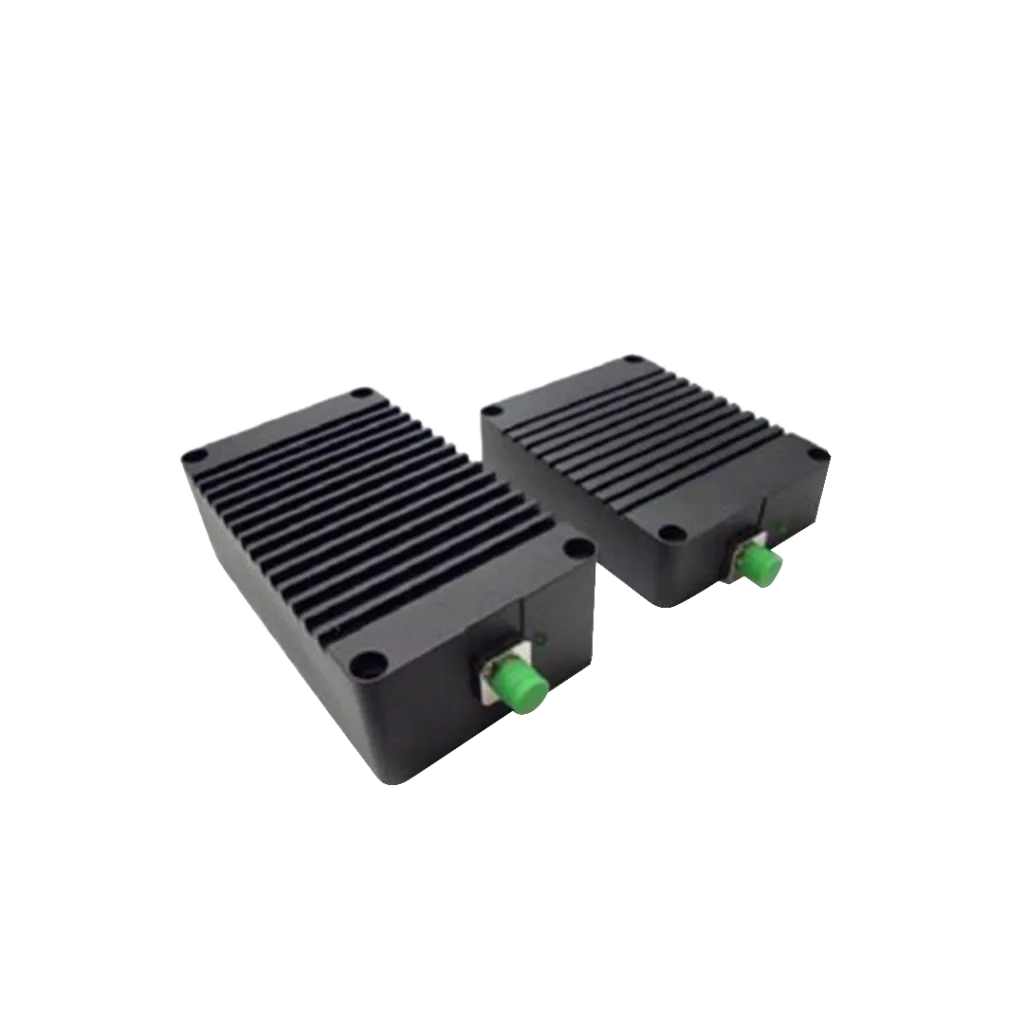

Inphenix SLD modules are built to offer exceptional flexibility and versatility in their application. The modules come in a robust housing that not only protects the internal components but also facilitates easy mounting and integration into various systems. Researchers rely on the broad light source module for its stable and consistent performance in diverse environments. Easy to use, with flexible connectivity options. The inclusion of an integrated current driver and thermo-electric cooler simplifies the power management and thermal regulation processes, allowing the modules to be powered by a straightforward 5-volt supply. This level of integration reduces the need for additional external components, streamlining the setup process and making it more convenient for users to incorporate these modules into their existing optical systems.
Versatile Light Output and Connectivity Options
One of the key features of Inphenix SLD modules is their versatile light output options. Users can choose between continuous internal-to-external fiber connections or an optical fiber adapter that supports removable pigtail interconnectivity. This adaptability is crucial for systems that require either a permanent installation or a modular approach, where components may need to be replaced or upgraded periodically. The flexible connectivity options make these modules suitable for a broad spectrum of applications, ensuring that they can be easily integrated into different optical setups without extensive modification.
Wide Range of Central Wavelength Windows
Inphenix SLD modules are characterized by their broad range of central wavelength windows, spanning from 700 nm to 1700 nm. This wide operability range makes these modules highly versatile, supporting a variety of applications across multiple fields. Whether used in optical coherence tomography (OCT), spectroscopy, or other advanced imaging techniques, the modules deliver high power densities across wide Full Width at Half Maximum (FWHM) bandwidths. This ensures precise and reliable measurements, which are critical for achieving accurate results in both research and industrial applications.
Enhanced Performance Through Advanced Features
Inphenix SLD modules are designed with several advanced features that contribute to their enhanced performance:
- Integrated Current Driver and Thermo-Electric Cooler: These components ensure the SLD module operates with optimal stability, even under varying environmental conditions. The thermo-electric cooler regulates the module’s temperature, preventing overheating and maintaining consistent performance.
- High Power Stability: The modules are engineered to maintain a consistent power output, which is essential for applications that require high precision and reliability. This stability is particularly valuable in environments where fluctuations in power could compromise the accuracy of measurements.
- Compact and Robust Design: The durable housing of the SLD modules protects the sensitive internal components from physical damage and environmental stress, ensuring long-term reliability. This design is particularly beneficial in demanding industrial and research settings where equipment longevity is crucial.
- Customizable Options: Inphenix offers customization for their SLD modules, allowing users to specify wavelength, power output, and other parameters according to their specific needs. This customization ensures that the modules can be tailored to meet the exact requirements of different applications, providing a level of precision that off-the-shelf products may not offer.
Applications in Advanced Research and Industry
Inphenix SLD modules are ideally suited for a wide range of advanced research and industrial applications. Their high power output, broad wavelength range, and superior reliability make them a preferred choice in several critical areas:
- Optical Coherence Tomography (OCT): In OCT systems, Inphenix SLD modules provide the high power and wide bandwidth necessary for producing high-resolution images. This is especially important in medical diagnostics, where detailed imaging of biological tissues can lead to early detection and treatment of diseases.
- Spectroscopy: The broad wavelength range of these modules allows for detailed spectral analysis, making them invaluable in both research and industrial settings where precise identification of materials and substances is required.
- Biomedical Imaging: In non-invasive medical imaging techniques, such as those used in diagnostics, the versatility and reliability of Inphenix SLD modules enable high-quality imaging that can be used to monitor and diagnose various medical conditions.
- Industrial Inspection: The precision and reliability of Inphenix SLD modules make them ideal for inspecting materials and components across various industries. This includes quality control processes where accurate measurements are critical to ensuring product integrity and compliance with standards.
- Telecommunications: The wide wavelength range and high stability of these modules make them suitable for integration into advanced telecommunication systems, where they can be used in tasks such as network testing and monitoring.
- Environmental Monitoring: The SLD modules’ ability to operate across a wide wavelength range allows them to be used in environmental sensing applications, where accurate detection of pollutants and other environmental factors is crucial for maintaining ecological balance.
Conclusion
Inphenix Superluminescent Diode modules represent a pinnacle of innovation and reliability in the field of optical broadband light sources. Their plug-and-play design, coupled with advanced features like integrated current drivers and thermo-electric coolers, makes them an excellent choice for OEM integration. With a broad wavelength range and versatile connectivity options, these modules are ideally suited for a variety of advanced applications, from medical imaging and spectroscopy to industrial inspection and telecommunications.
Inphenix’s commitment to quality and innovation ensures that their SLD modules provide the cutting-edge performance needed by researchers and engineers to achieve their objectives. Whether you require standard modules or customized solutions tailored to specific needs, Inphenix SLD modules deliver the performance, flexibility, and reliability necessary to push the boundaries of what is possible in advanced optical applications.
